An isolator filling workcell is a robotic, closed-system aseptic filling platform designed to eliminate human presence from the critical fill environment. Purpose-built for sterile fill-finish isolator operations, it achieves the highest level of sterility assurance available in GMP pharmaceutical manufacturing. For drug developers evaluating fill-finish options, particularly for biologics, oxygen-sensitive molecules, and orphan drug programs, understanding this platform is essential to making the right manufacturing decision.
How an Isolator Filling Workcell Works
In conventional aseptic manufacturing, personnel working within cleanrooms or behind restricted access barrier systems (RABS) represent the primary source of microbial and particulate contamination.
An isolator filling workcell addresses this by operating as a fully closed system with no direct human access to the filling zone. BioCina’s SA25 Cytiva robotic aseptic isolator illustrates the design: ready-to-use (RTU) components are loaded through a biodecontamination staging chamber, where a validated sanitization cycle achieves a minimum 6-log reduction in bioburden before transfer. Filling and closure then occur in a downstream sealed filling isolator with all material handling performed robotically.
Internal air throughout the critical zone is maintained at ISO Class 5 / Grade A quality through HEPA filtration and controlled unidirectional airflow. With no glove ports and no conveyor belts passing through the fill environment, isolator fill finish eliminates the principal contamination variables present in conventional cleanroom and RABS operations entirely.
Isolator vs RABS vs Traditional Aseptic Filling
| Environment | Human Separation | Best Suited For |
|---|---|---|
| Traditional cleanroom | Personnel gowned and present throughout | Lower-risk formulations, high-volume commodity products |
| RABS | Rigid barrier; interventions via glove ports | High-potency and cytotoxic injectables; cost-effective aseptic isolator filling |
| Isolator filling workcell | Fully closed; robotic handling; no glove ports | Biologics, oxygen-sensitive molecules, orphan drugs, programs where maximum contamination control assurance is required |
Three environments are used for aseptic fill-finish. Each offers a different level of operator separation and sterility assurance:
What Products Are Best Suited for Isolator Filling
The isolator’s combination of sterility assurance, format flexibility, and containment makes it the platform of choice for:
- Biologic drug products, including monoclonal antibodies, recombinant proteins, peptides, and antibody fragments
- Oxygen-sensitive formulations requiring headspace O2 control below 5% and nitrogen blanketing
- Orphan and rare disease programs with small commercial batch sizes requiring full GMP compliance
- Clinical trial supply from Phase I through Phase III at flexible batch sizes
- mRNA, cell and gene therapy products requiring the highest achievable aseptic conditions
- Biosimilar fill-finish programs targeting FDA, EMA, or TGA regulatory submissions
Key Technical Parameters: SA25 Cytiva Platform

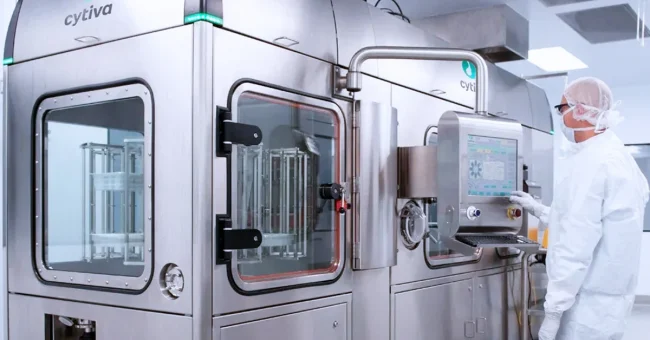

The SA25 Cytiva robotic aseptic isolator is one of the pharmaceutical industry’s leading isolator filling workcell platforms. Representative specifications:
| Parameter | Detail |
|---|---|
| Fill volume range | 0.5 mL to 50 mL |
| Batch size range | 0.5 L to 500 L (approx. 100 to 20,000 units) |
| Vial formats | 2 mL, 6 mL, 10 mL |
| Syringe formats | 1 mL, 5 mL (glass and plastic; luer-lock and staked needle) |
| Cartridge formats | 3 mL |
| Headspace O2 | Less than 5% achievable |
| Viscosity handling | 1 cP to 40 cP |
| Key features | Nitrogen overlay, vacuum stoppering, fully robotic material handling |
| Compliance | EU Annex 1 compliant |
| Annual capacity (BioCina) | 5M+ units |
EU Annex 1 Compliant Aseptic Filling
The 2022 revision of EU Annex 1, the European GMP guideline governing sterile medicinal product manufacture, elevated the standard for aseptic processing globally. The revised guideline requires manufacturers to implement a documented contamination control strategy (CCS) and places strong emphasis on barrier technologies, including isolators, as the preferred approach for high-risk aseptic operations.
An isolator filling workcell, with its Grade A filling environment, validated biodecontamination cycle, and fully robotic material handling, directly satisfies the contamination control requirements the 2022 revision specifies. BioCina’s SA25 isolator filling workcell is EU Annex 1 compliant, operating within a GMP sterile manufacturing environment designed for global regulatory readiness. The facility’s contamination control strategy (CCS) is documented and validated to the standards EMA regulatory inspections, making it an audit-ready option for programs targeting European market authorisation or applying EU GMP standards as a global quality baseline.
FAQs
What is the difference between an isolator and RABS?
Both restrict access to the filling zone, but they differ in the degree of separation. A RABS uses a rigid barrier with gloved interventions. An isolator is fully closed with no glove ports and no human presence in the fill environment during operation. Isolators provide higher sterility assurance because the primary contamination source, the operator, is excluded from the critical zone entirely.
What products can be filled in an isolator filling workcell?
Isolator filling workcells support biologics, oxygen-sensitive formulations, mRNA and cell therapy products, orphan drugs, and clinical trial supply programs where the highest sterility assurance is required. They accommodate vials, pre-filled syringes, and cartridges within a single qualified platform.
How does an isolator filling workcell achieve EU Annex 1 compliance?
Compliance is achieved through closed system design, HEPA-filtered Grade A air, validated biodecontamination cycles, and fully robotic material handling. These features collectively address the contamination control strategy requirements in the 2022 Annex 1 revision, which explicitly identifies isolators as the preferred solution for high-risk aseptic filling.
Is an isolator filling workcell suitable for clinical-stage programs?
Yes. Batch size flexibility, ranging from sub-liter clinical runs to several hundred liters, makes isolator filling workcells well suited to Phase I through pivotal Phase III supply. The platform is particularly relevant for orphan drug programs where small commercial batches must meet the same GMP standards as large-volume commercial manufacturing.
BioCina's Isolator Filling Workcell
BioCina operates the SA25 Cytiva robotic aseptic isolator at its sterile drug product facility. EU Annex 1 compliant. Supports glass vials (2, 6, 10 mL), pre-filled syringes (1, 5 mL in glass and plastic), and cartridges (3 mL). Fill volumes from 0.5 to 50 mL. 5M+ unit annual capacity. To discuss your program, contact BioCina’s technical team.
[1] Cytiva. SA25 Aseptic Filling WorkCell: Product Overview. cytivalifesciences.com, 2024.
[2] Syntegon. Pharmaceutical Isolator and Barrier Systems: Integrated Air Management and Filling Solutions. syntegon.com, 2024.
[3] European Commission. Annex 1 to EU Guidelines for Good Manufacturing Practice: Manufacture of Sterile Medicinal Products. EudraLex Volume 4, August 2022.
[4] Körber Pharma. Aseptic Isolator: Pharmaceutical Glossary. koerber-pharma.com, 2024.
[5] Pharmaceutical Technology. The Advantages of Isolator Lines for Large-Scale Pharma Manufacturing. pharmaceutical-technology.com, May 2025.
